Toast - Bumpbar & Bracket

Bumpbar support requires Toast Software Version 2.74 or later

USB-A Cables are intended for EloV4 and EloV3 customers and are not currently compatible with any Toast Flex KDS devices. Please use USB-C Cables for all Toast Flex KDS devices.

Bumpbar Bracket Options:

Each purchase of a Toast Bumpbar comes with the option of our various Bumpbar Bracket offerings. There are pictures of the Bumpbar on each Bracket so you can see how they work.

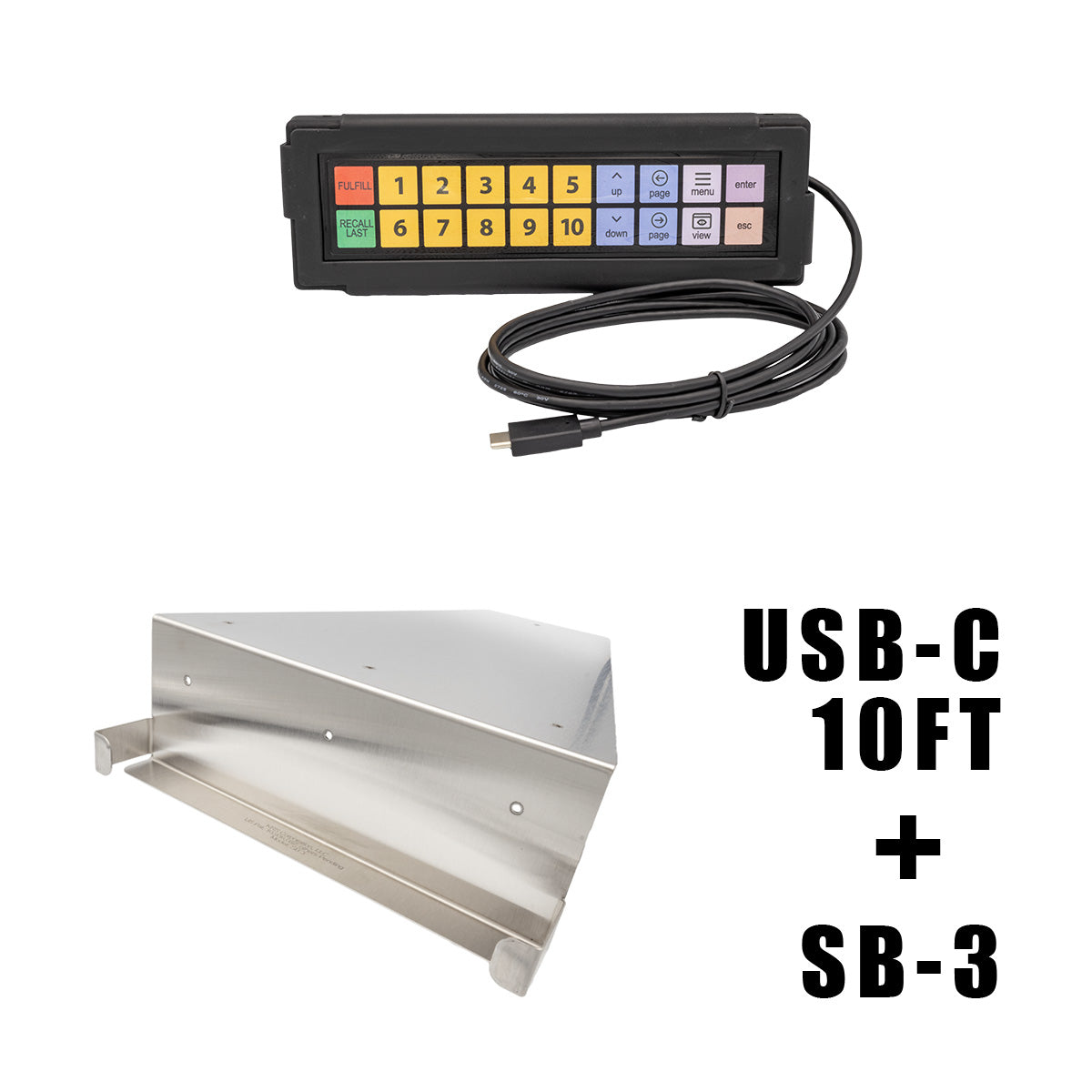

SB-3: Best used when placed under a heavy object such as a microwave. This allows you to mount your Bumpbar without drilling any holes or using any other mounting equipment. (Horizontal Only)

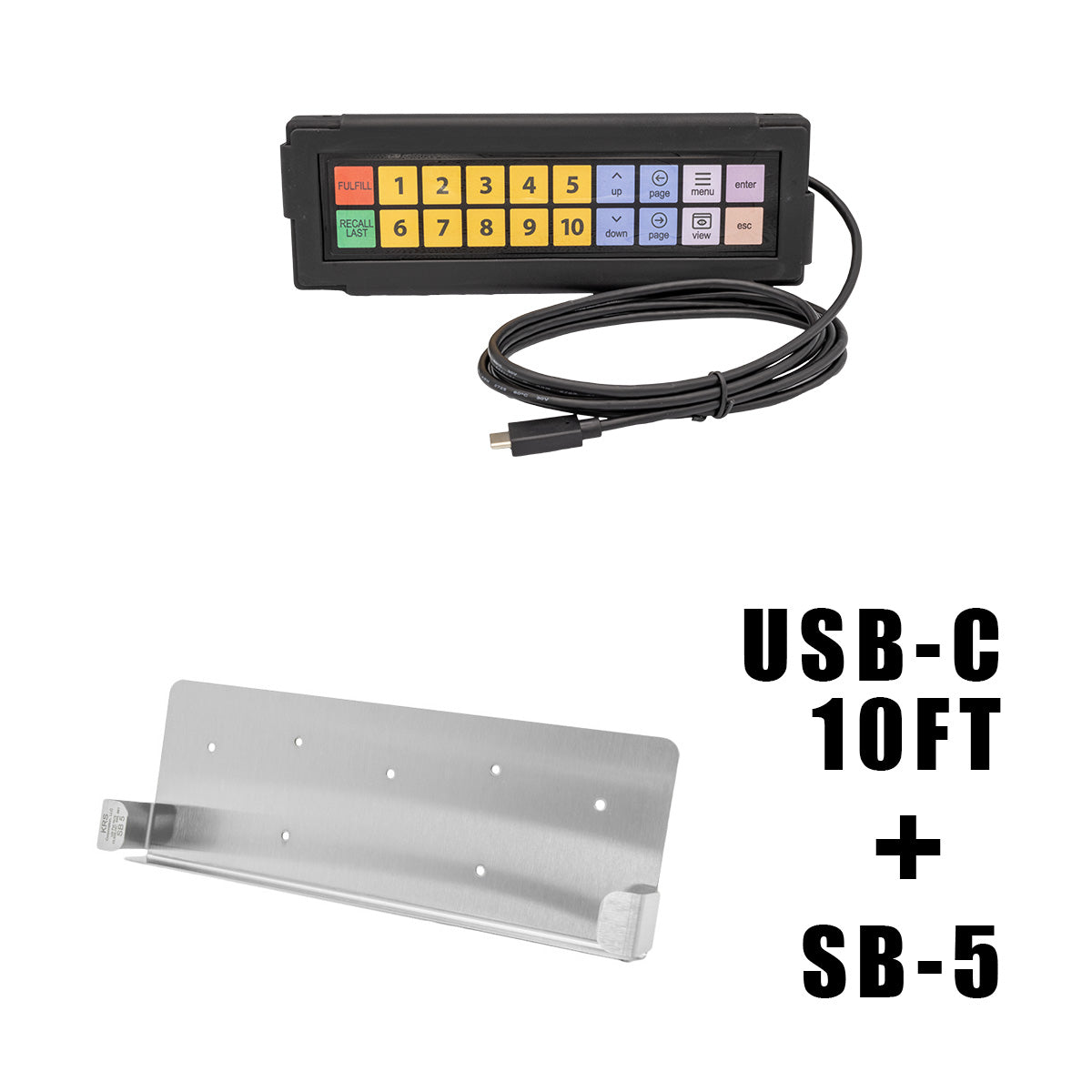

SB-5: Can be easily mounted to any flat surface through the included mounted holes. Very low profile and out of the way when space is at a premium. (Horizontal Only)

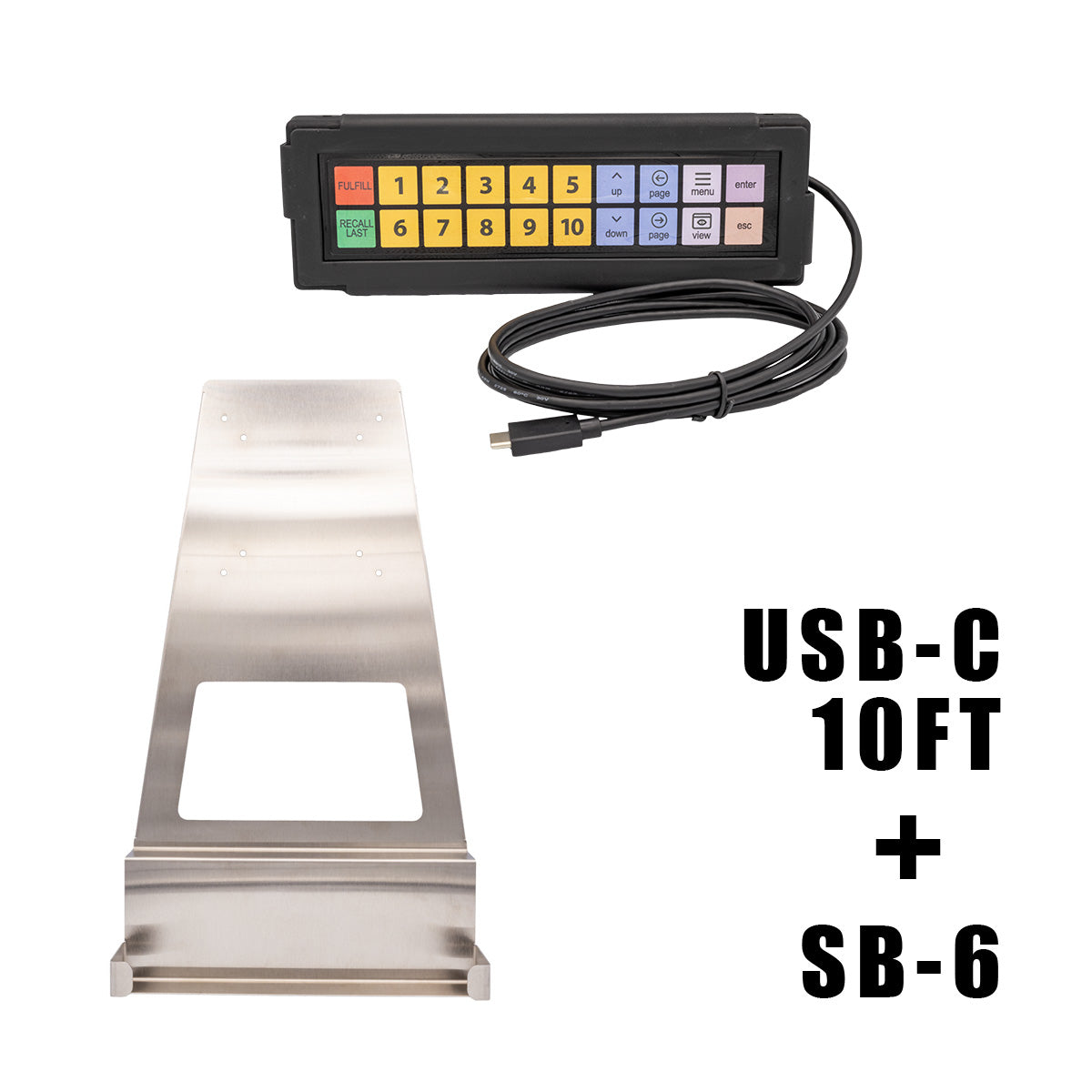

SB-6: Easily mounts to the back of any KDS display with VESA mount points, allowing you to have an all-in-one setup for your KDS system. Includes large cutout for easy cable routing. For installation/mounting instructions, see this page. (Horizontal Only)

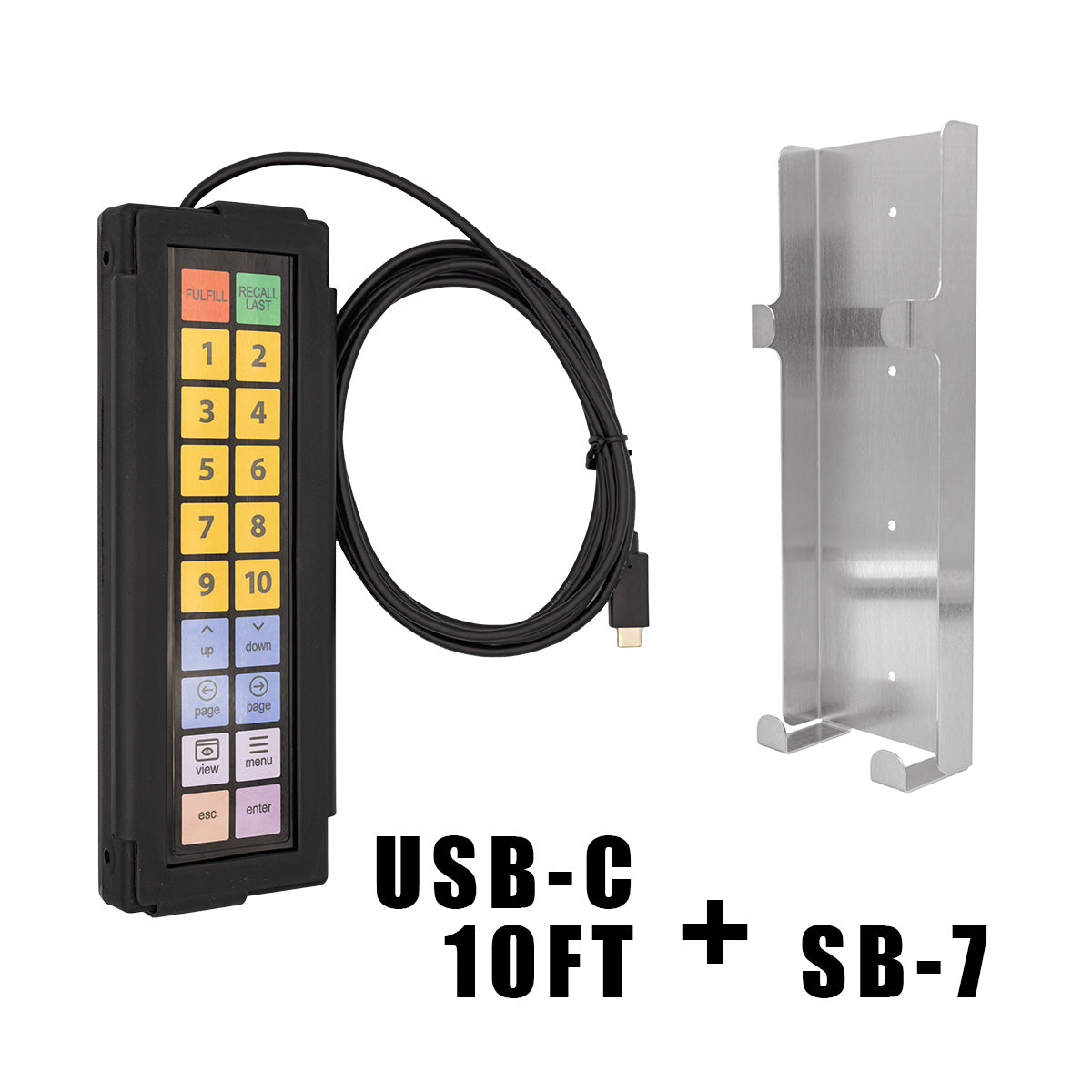

SB-7: If you are wanting to mount your Bumpbar vertically, this is the best solution! Very similar to the SB-5, you can mount this bracket to any flat surface using the various mount holes. Then simply slide Bumpbar into place from above. (Vertical Only)

Bumpbar Overlay Insert Orientation:

All Bumpbars will include a double-sided Toast Overlay Insert, so do not worry about being limited to one orientation in the field. You can simple remove and flip the Overlay Insert to swap to your preferred orientation. Choosing your preferred orientation at checkout simply means your Bumpbar will be ready out-of-the-box to work with your chosen Bracket. If you decide to change orientation after initial set-up, you will need to change the Bumpbar Orientation on your Toast KDS device. Go to Device Setup. Under Kitchen Setup, select Bump Bar -> Layout, then select desired orientation. Your Bumpbar will NOT operate correctly is this setting does not match the orientation of your Overlay Insert. For more information click here.
